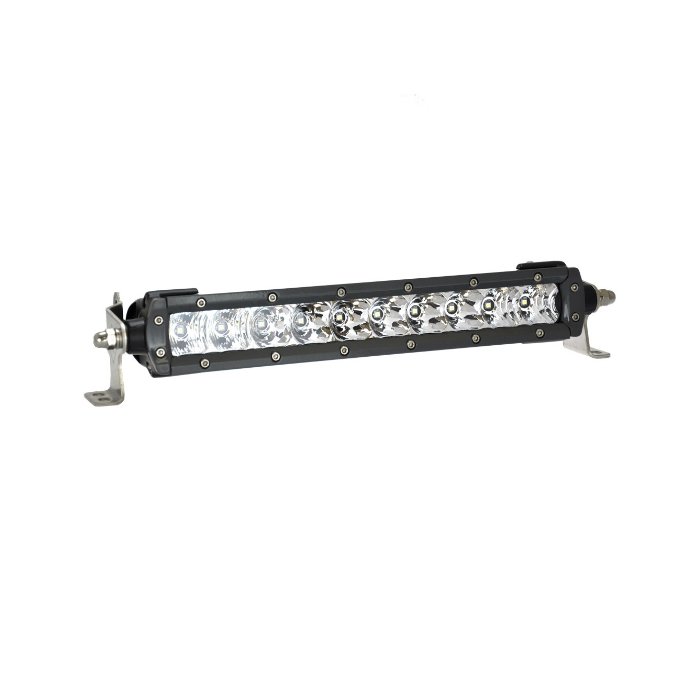

10" Single Row Light Bar by Lightforce

The Lightforce LED Bar range is rugged and impact resistant, featuring a hard-coated polycarbonate lens for durability and a waterproof rating to IP69K. The LED Bar range utilises high output European LEDs tuned within the reflectors to produce unparalleled performance in their class. With multiple mounting options available and complete with a waterproof Deutsch connector – including full wiring harness – the Lightforce LED Bar range delivers powerful performance in a simple package.

R 5,795.00 Sold out

CODE: LEDB10C

Description
Specification
What's in the box?

FEATURES

Extruded aluminium body with black anodized coating
IP69K rated to protect against moisture / contaminant ingress
Hard coated, scratch and high impact resistant polycarbonate lens
Custom moulded strain relief connector fitted to military spec cable
Genuine Gore® waterproof membrane with mechanical seal
Over, under and reverse voltage protection
Pulse width modulation thermal management circuitry
Protected against electromagnetic and radio frequency interference (RFI)
Stainless steel brackets and mounting hardware
Comprehensive wiring harness
Broad operating voltage range of 10 ~ 36 volts
Input cable length: 450mm (17.72″).Wiring Harness Length 2.5m (92.43″)
Deutsch waterproof connectors
RoHS certified
3 Year warranty

Connection Type: 2 Pin Deutsch Plug
Distance: 1 lux at: 283m
Distance: 0.25 lux at: 566m
Effective Lumens: 2072
Raw Lumens: 2800
Colour Temperature: 5000K
Current Draw: 3.4Amps @ 13.2V
Voltage Range: 10V - 36V DC
Wattage: 50W
Ingress Protection Rating: IP69K
Weight: 0.77kg

1 x Lightforce Single Row LED Bar
1 x Full wiring harness (including relay and switch connector)
2 x Stainless steel brackets and hardware
1 x User instructions
