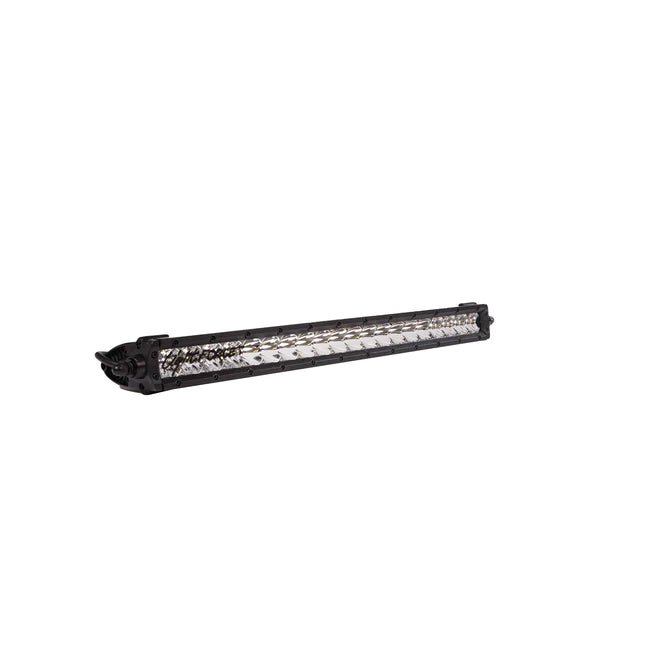

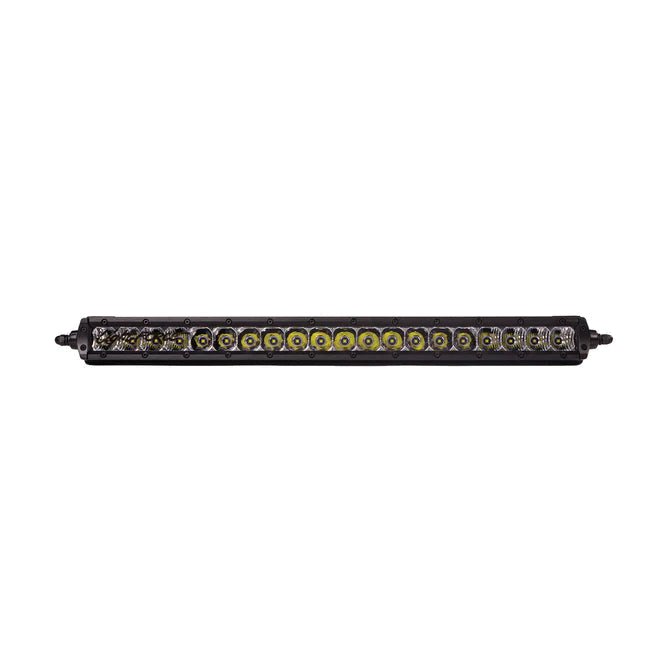

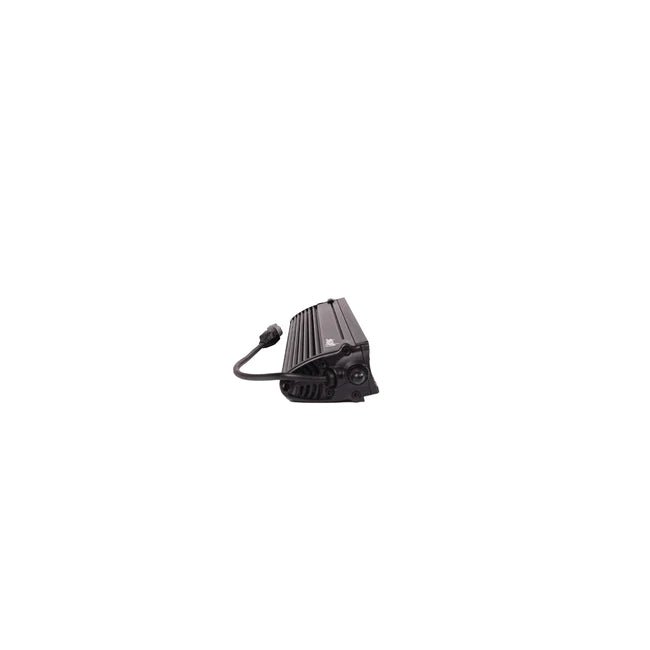

20" Single Row Light Bar by Lightforce

The Lightforce LED Bar range is rugged and impact resistant, featuring a hard-coated polycarbonate lens for durability and a waterproof rating to IP69K. The LED Bar range utilises high output European LEDs tuned within the reflectors to produce unparalleled performance in their class. With multiple mounting options available and complete with a waterproof Deutsch connector – including full wiring harness – the Lightforce LED Bar range delivers powerful performance in a simple package

R 9,495.00 Sold out

CODE: LEDB20C

Description
Specification
What's in the box?

FEATURES

Extruded aluminium body with black anodized coating
IP69K rated to protect against moisture / contaminant ingress
Hard coated, scratch and high impact resistant polycarbonate lens
Custom moulded strain relief connector fitted to military spec cable
Genuine Gore® waterproof membrane with mechanical seal
Over, under and reverse voltage protection
Pulse width modulation thermal management circuitry
Protected against electromagnetic and radio frequency interference (RFI)
Stainless steel brackets and mounting hardware
Comprehensive wiring harness
Broad operating voltage range of 10 ~ 36 volts
Input cable length: 450mm (17.72″).Wiring Harness Length 2.5m (92.43″)
Deutsch waterproof connectors
RoHS certified
3 Year warranty.

Distance:1 lux at 404m

Distance: 0.25 lux at 808mm

Effective Lumens 4390

Raw Lumens 5600

Colour Temperature 5000K

Current Draw 7Amps @ 13.2V

Voltage Range 10V - 36V DC

Wattage 100W

Ingress Protection Rating IP69K

Weight 1.22kg

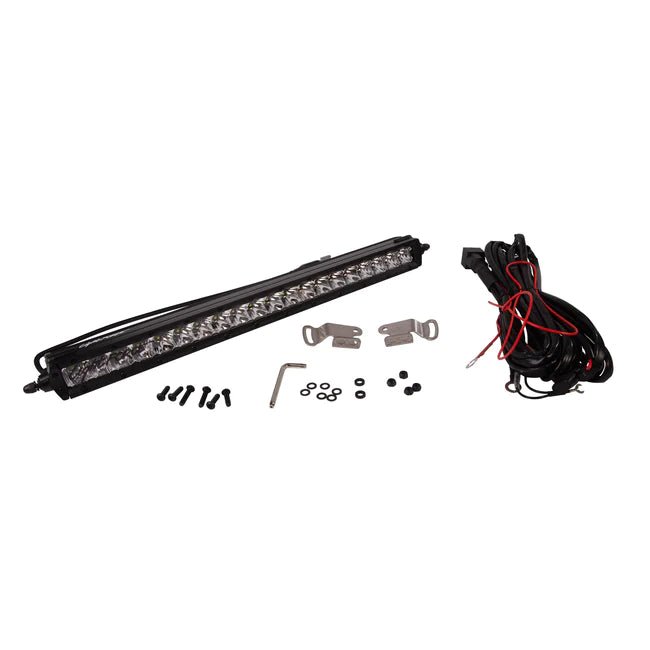

1 x Lightforce Single Row LED Bar
1 x Full wiring harness (including relay and switch connector)
2 x Stainless steel brackets and hardware
1 x User instructions
