Victron Automotive IP65 Charger 12V/4A - 12V/1A with DC connector by Solarvest

DC connector

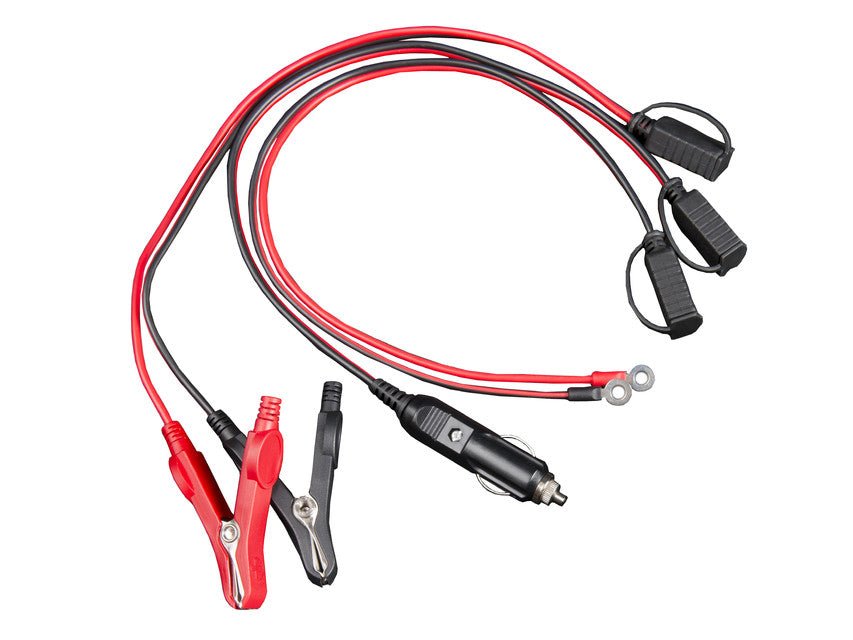

Depending on the application, clamps, eyelets or a cigarette plug (all included) can be connected to the charger.

Less maintenance and aging when the battery is not in use: the Storage Mode

The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 13,2 V to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.

Protected against overheating and reverse polarity connection

The output current will reduce as temperature increases up to 40°C, but the charger will not fail. Output relay protects against reverse polarity connection.

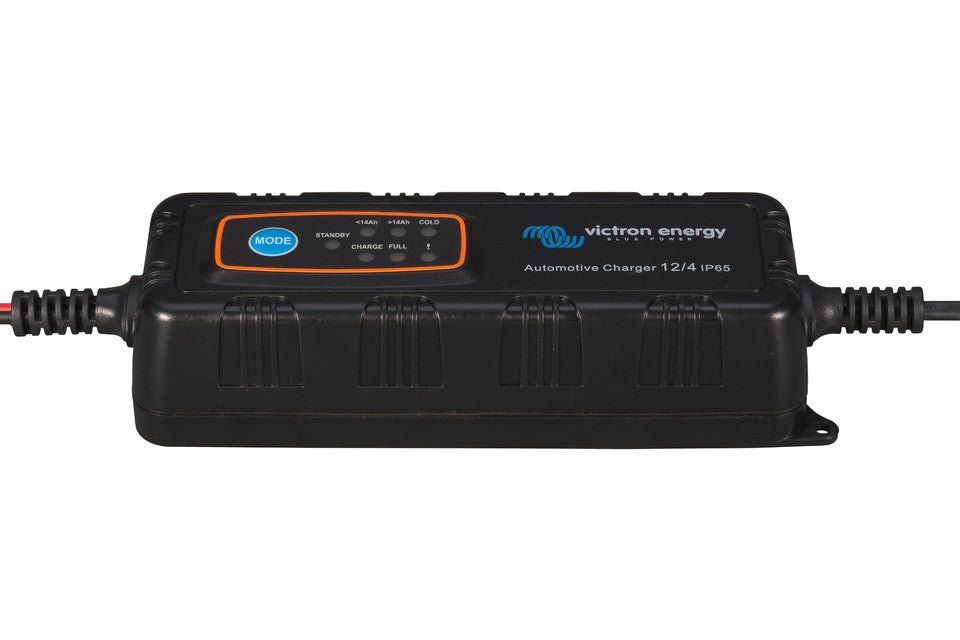

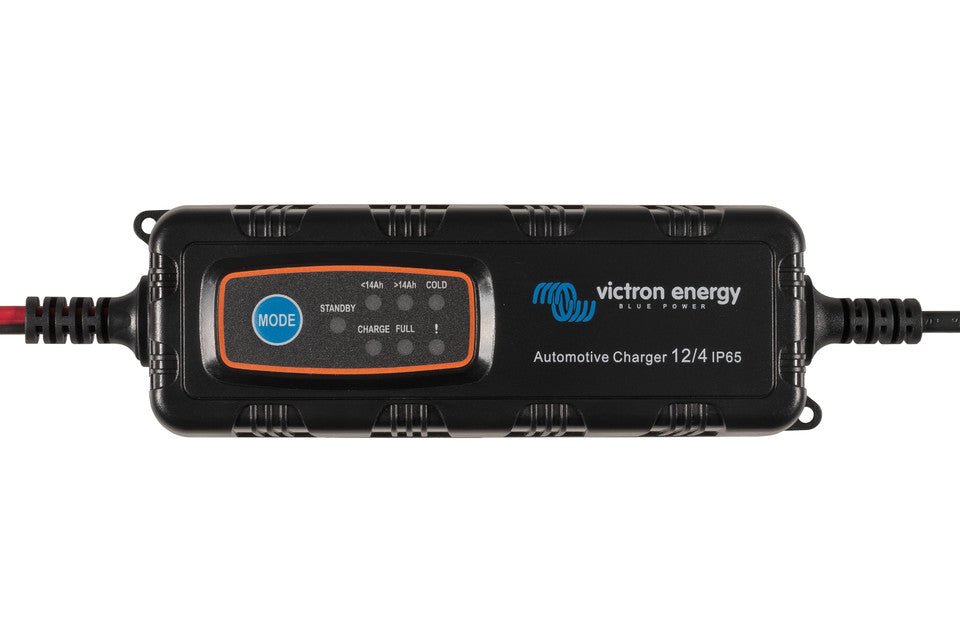

Five LED’s for status and mode indication

When connected to the AC supply the STAND-BY LED will turn on. No voltage will be present at the output. After connection to a battery (battery voltage must exceed 8,5V), a choice can be made out of three charge profiles with the MODE button:

1. Current limited t0 0,8A and 14,4V absorption voltage. The red LED <14Ah will be on.

2. Current 4A and 14,4V absorption voltage. The red LED >14Ah will be on. Application: Flooded, AGM or GEL batteries. Ambient temperature 10-35°C.

3. Current 4A and 14,7V absorption voltage. The red LED COLD will be on. Application:

   Flooded, AGM or GEL batteries. Ambient temperature below 10°C, or batteries requiring a higher charge voltage (OPTIMA spiral cell batteries for example).

Until the battery is fully charged, the red LED CHARGE will be on. After completion of the charge process, the red LED FULL will be on.

In case of reverse polarity connection, the red LED ! will be on
If the red LED STANDBY remains on, even after pressing the MODE button, the connection to the battery is interrupted.
